WeThePeople Nova 2021 Ultra Violet

$749.00

Brand: WETHEPEOPLE

20" / Ultra Violet

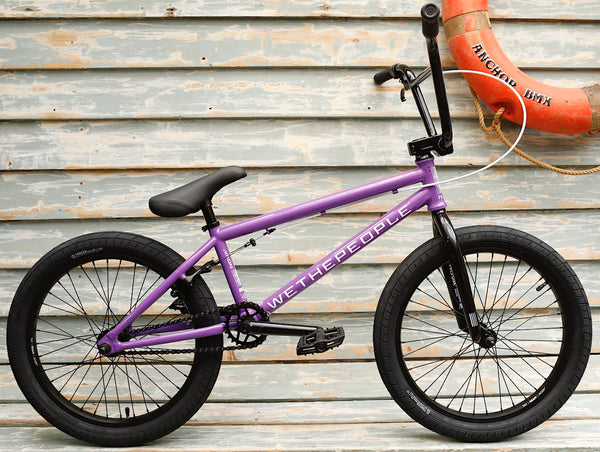

WeThePeople Nova 2021 Ultra Violet
Bringing WETHEPEOPLE quality to a lower price point for 2021 is our entry-level shredding machine that is available in five incredible colourways and two toptube options. The Nova features a super short 12.75” oval chainstay and responsive 26mm offset fork allowing it to not only feel just like the bikes our PRO team ride, but also make it much easier to progress your riding even further.

SPECIFICATIONS

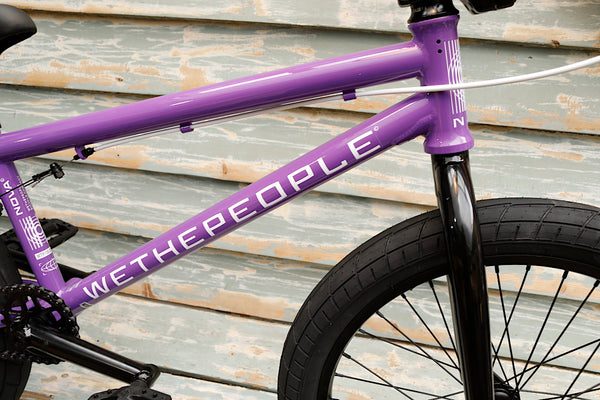

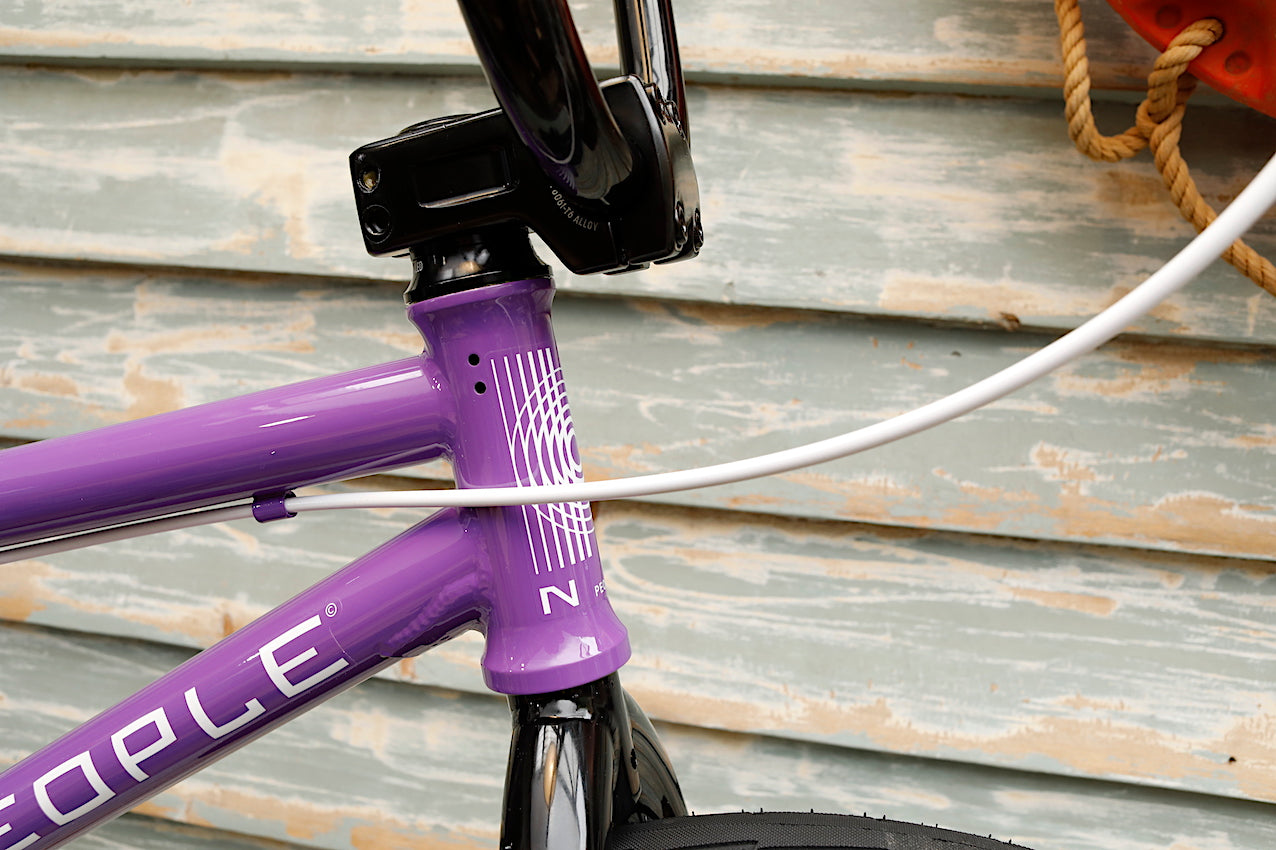

Frame: WETHEPEOPLE "NOVA" frame, 1020 hi-ten

Fork: SALT “AM 20” fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset

Bars: SALT "NOVA" bar, 1020 hi-ten

Grips: SALT "EX" 154mm, flangeless grips

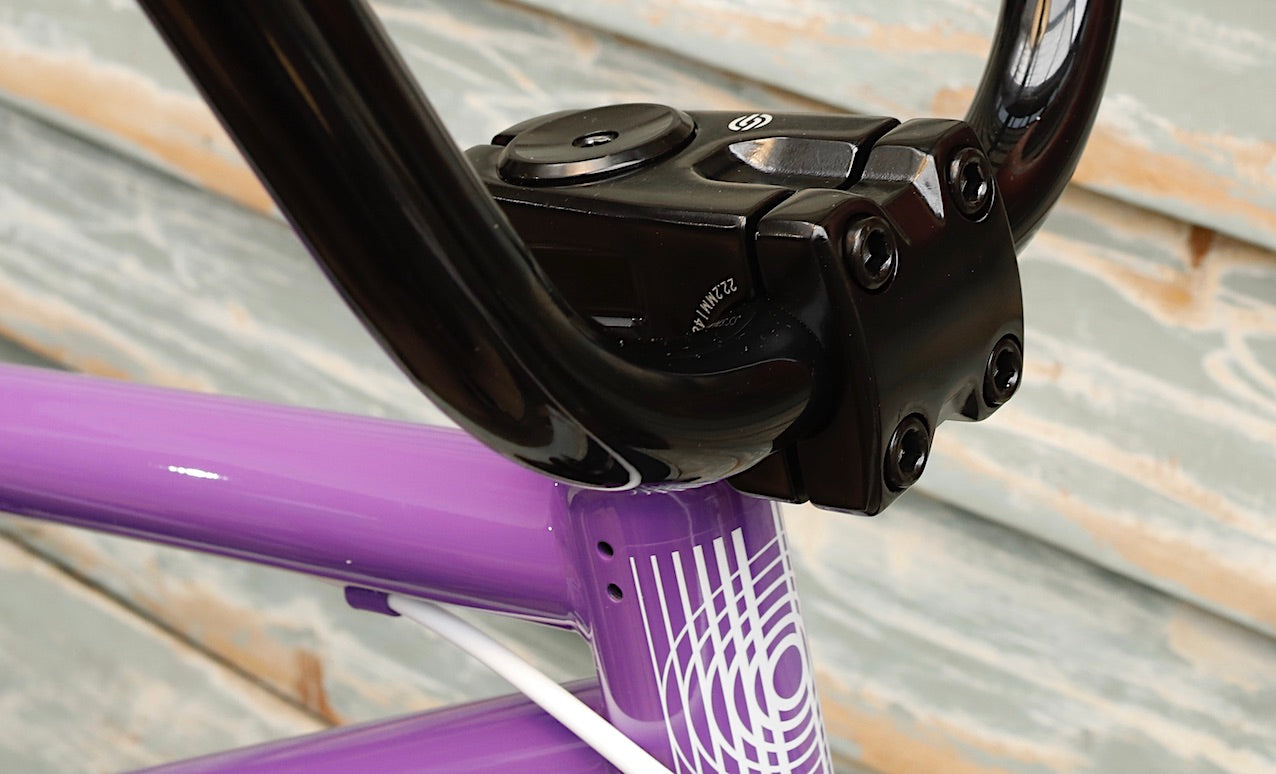

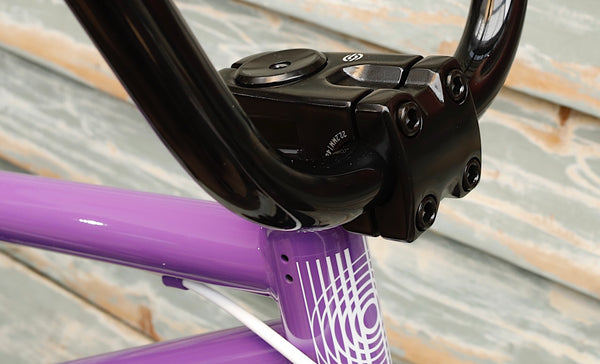

Stem: SALT "PRO" front loading stem, 50mm reach

Headset: SALT “PRO" int. headset, sealed bearing

Gyro: holes for removable gyro tabs

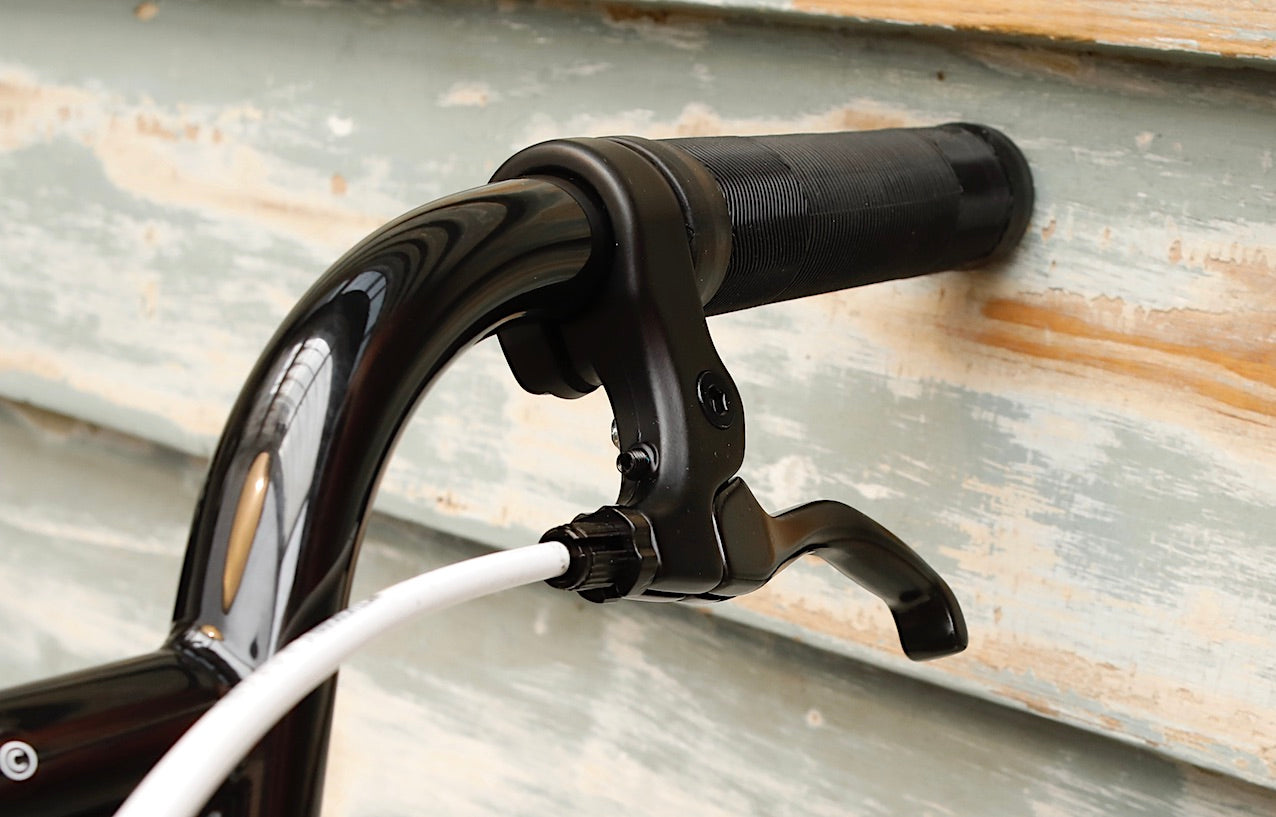

Lever: SALT “AM” alloy brake lever

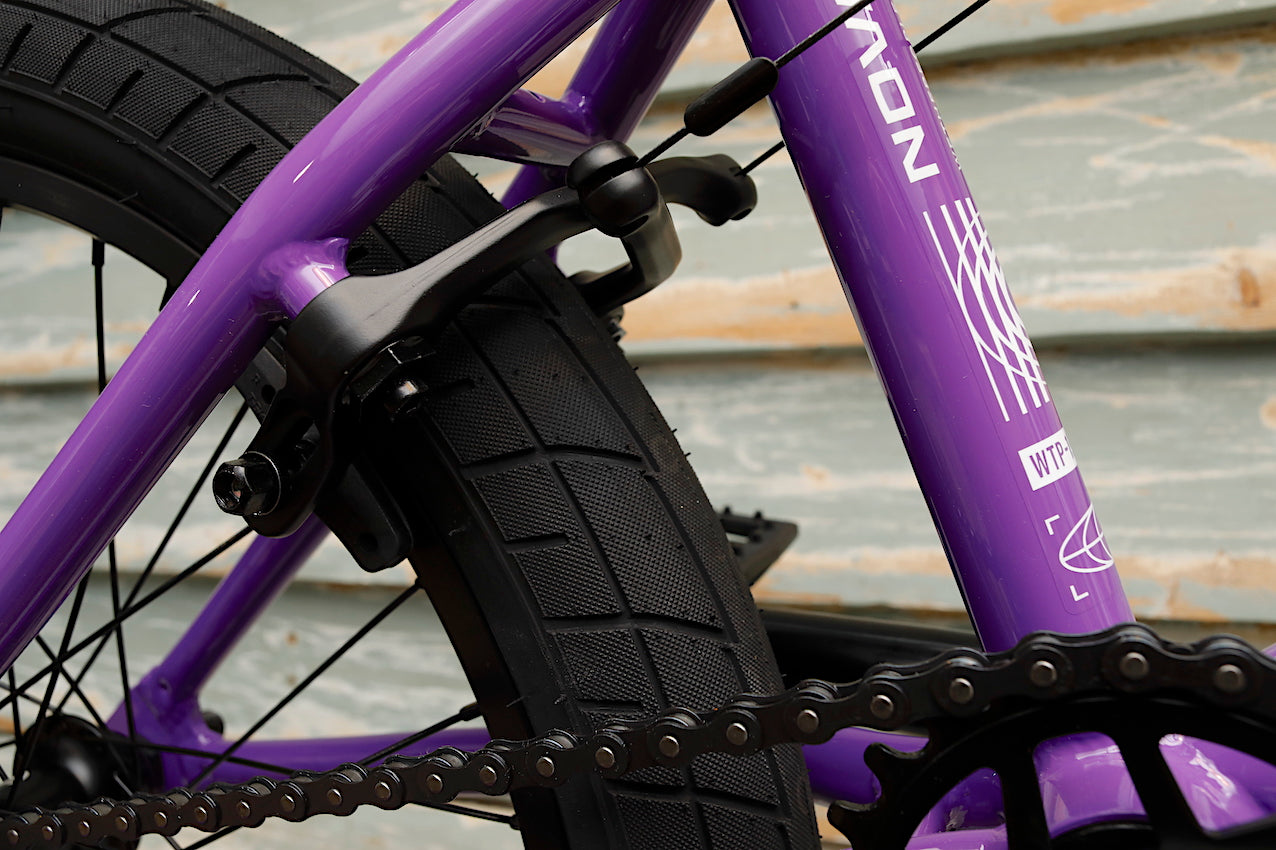

Brakes: SALTPLUS "GEO XL" alloy u-brake-rear

Cranks: SALT “ROOKIE” tubular 3pc crank crmo 165mm, 8 Spline

BB: SALT “MID” 19mm, press fit, sealed bearing

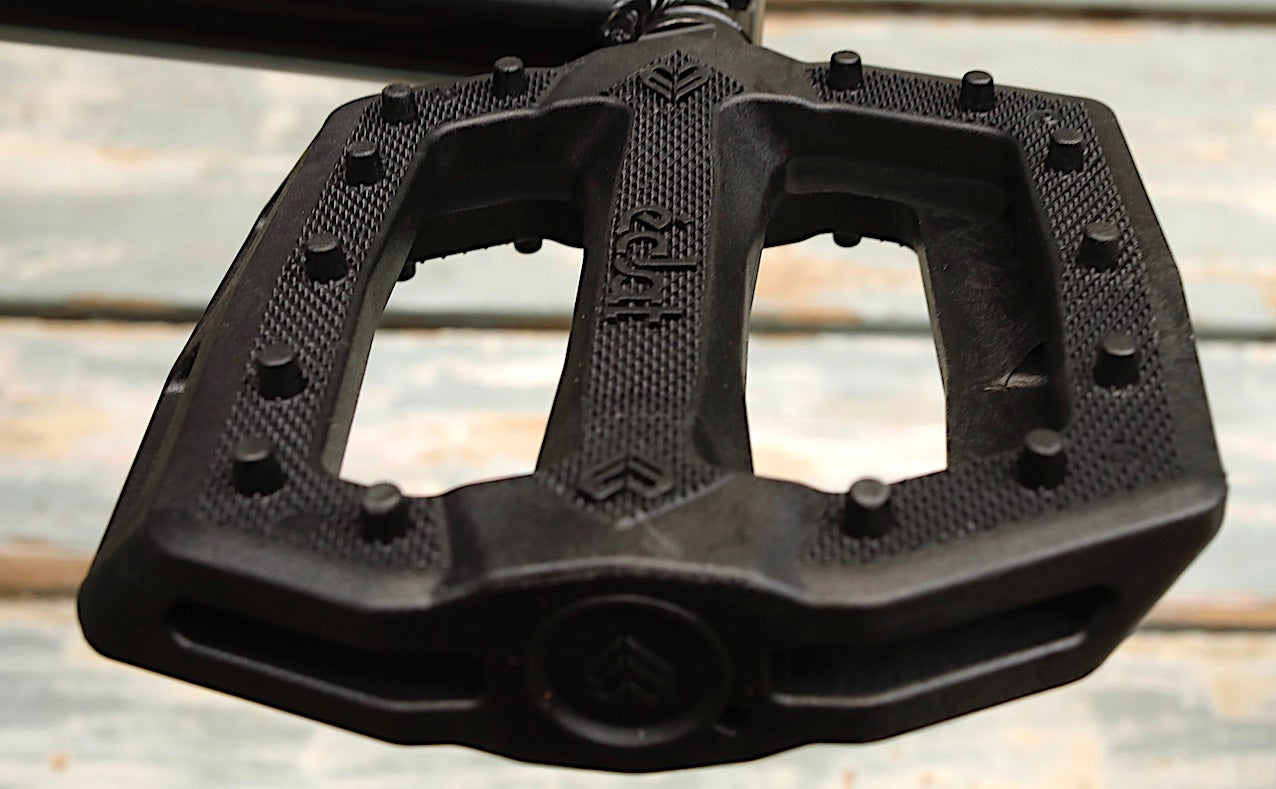

Pedals:  ÉCLAT “Slash” nylon/fiberglass pedals

Chain: SALT “AM” chain, Z1 type

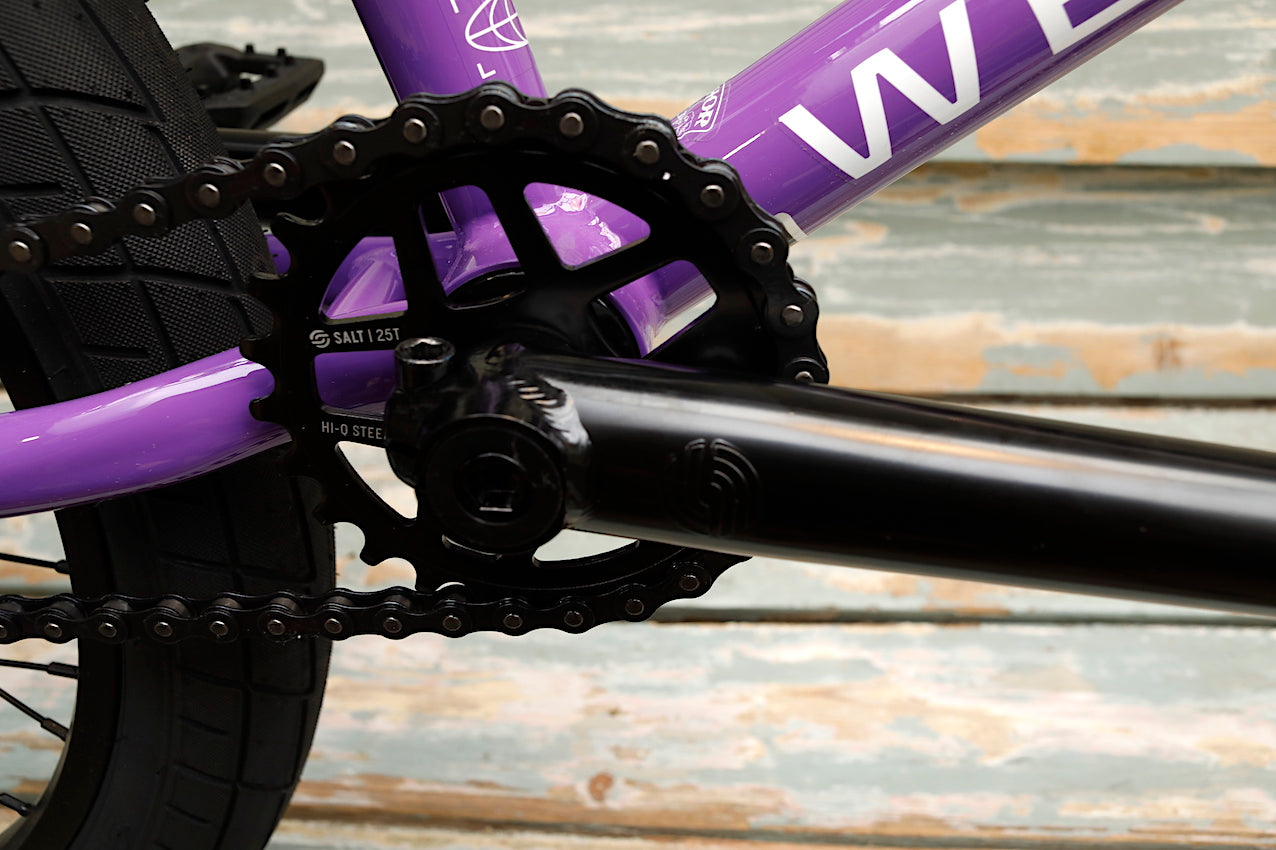

Sprocket SALT “GATEWAY” steel 25t sprocket

Driver: 9t, 1pc cassette driver, loose ball bearing

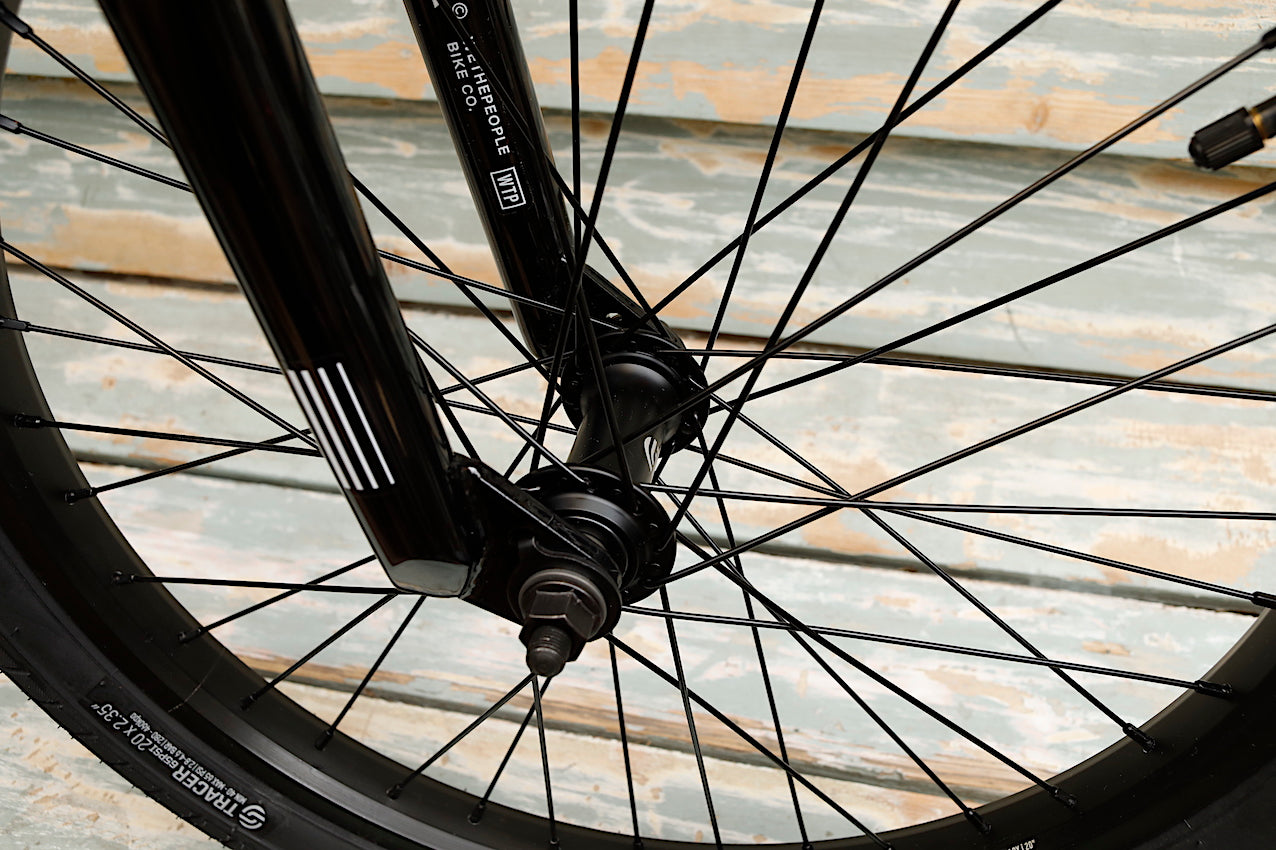

Front Hub: SALT ”NOVA” alloy hub, loose ball 3/8"s axle, 36h

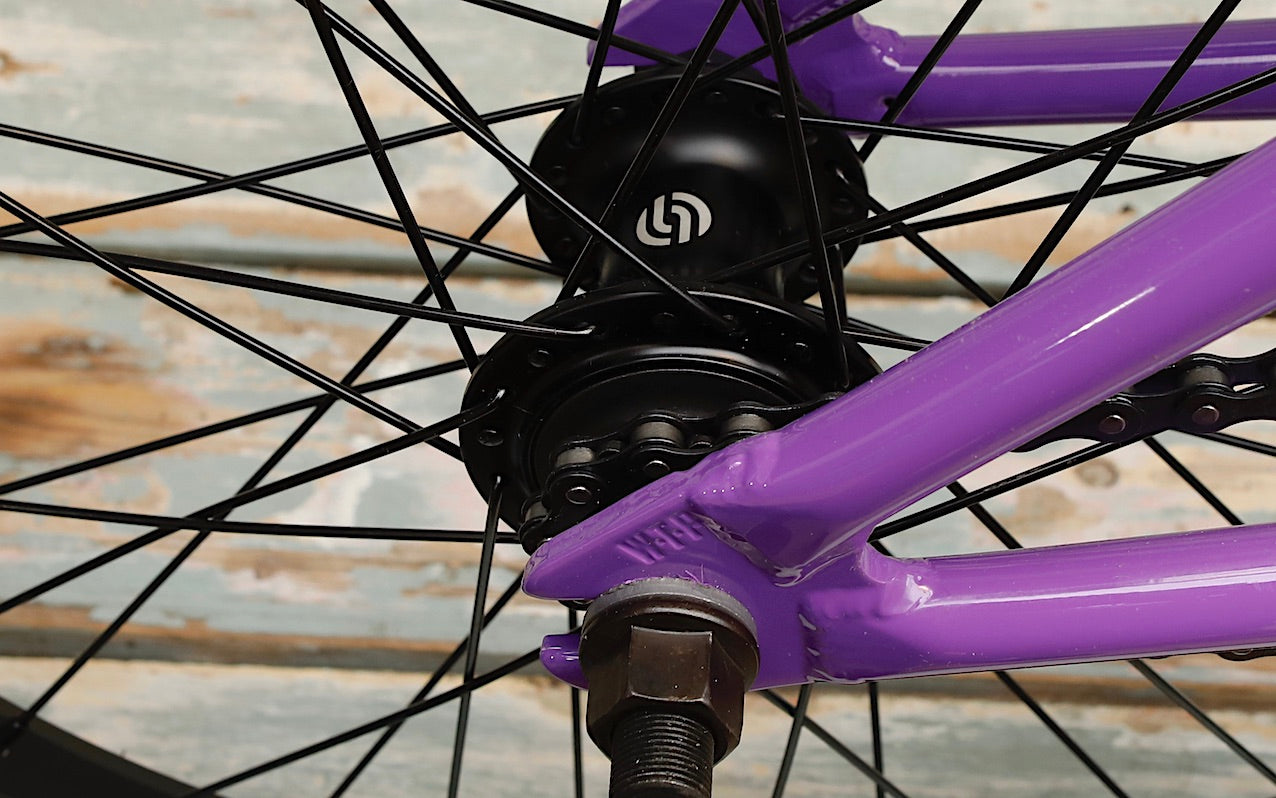

Rear Hub: SALT “NOVA" cassette hub, semi sealed, 9t, 14mm axle, 36h

Hubguards: -

Front Rim: SALT “BEAM” rim, single wall, 36h

Rear Rim: SALT “BEAM” rim, single wall, 36h

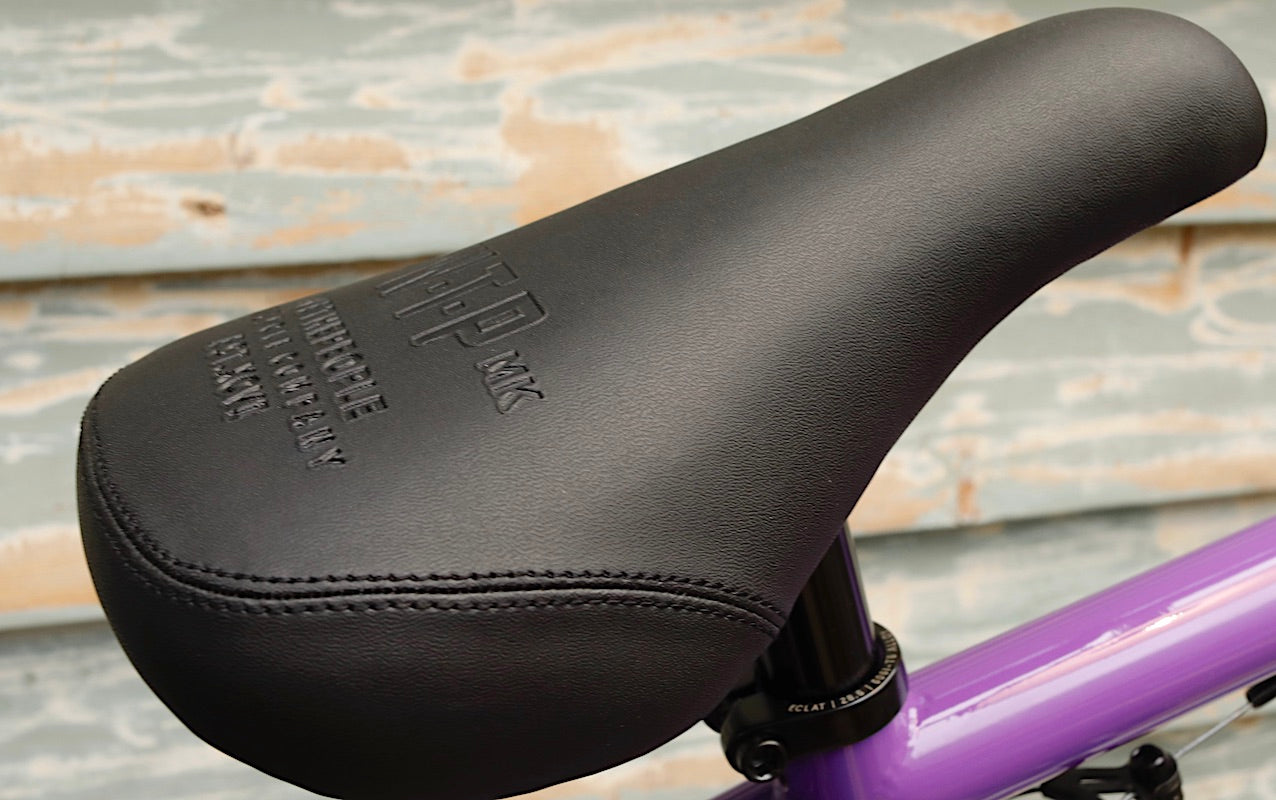

Seat:  WETHEPEOPLE “NOVA” mid padded combo seat

Seat Post: -

Seat Clamp: ÉCLAT “PURE” 6061-T6 forged alloy seat clamp

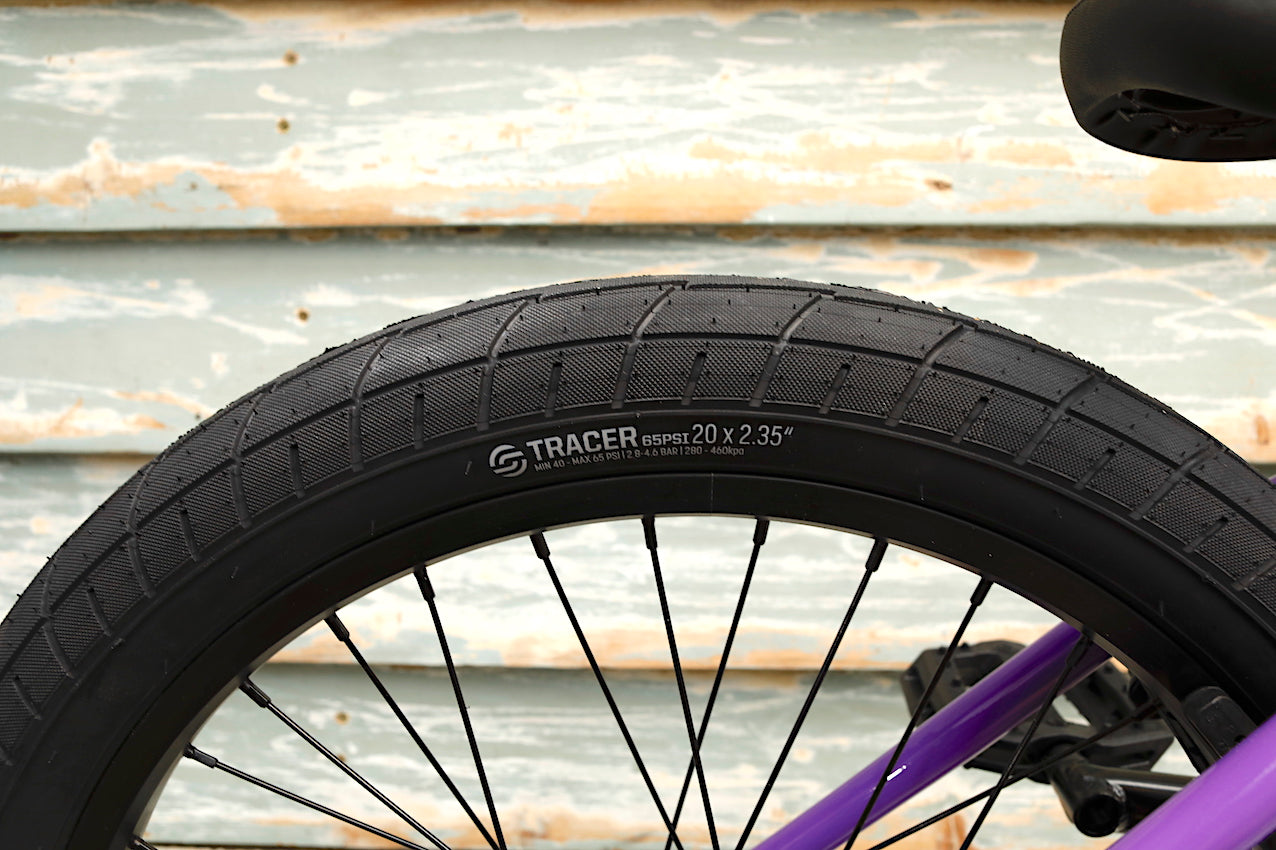

Tires: SALT “TRACER” tires 2.35" front & rear

Pegs: -

Weight: 11.92kg / 26.29lbs





FRAME GEOMETRY

A: Top Tube Length:  20” or 20.5”

B: Chain Stay Length: 12.75”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71.5°

E: Bottom Bracket Height: 11.75”

F: Stand Over Height: 8.38”




G: Bar Rise: 8.85“

H: Bar Width: 29”

I: Bar Back Sweep: 11°

J: Bar Up Sweep:






NOTE:

Anchor BMX recommends that all BMX Bikes be assembled by a qualified mechanic to prevent Improper wear.

All complete bikes are dissembled and boxed when ordered online.

Feel free to contact us with any questions or to arrange a test ride.
