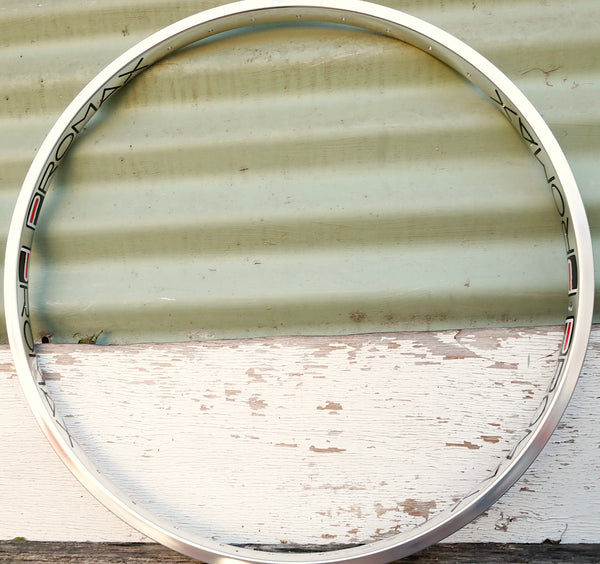

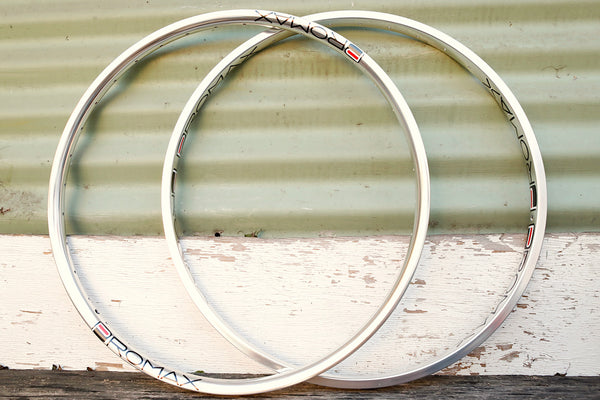

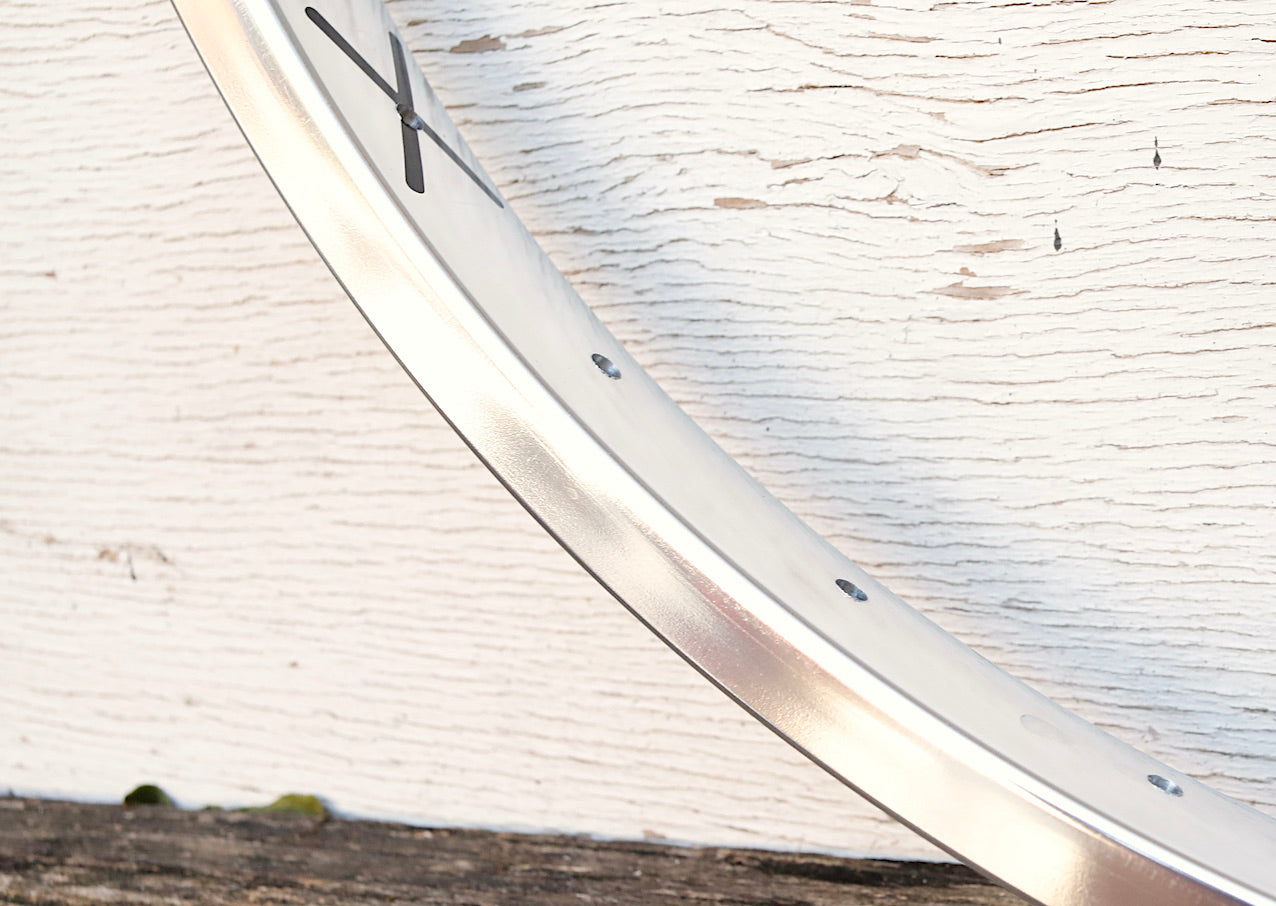

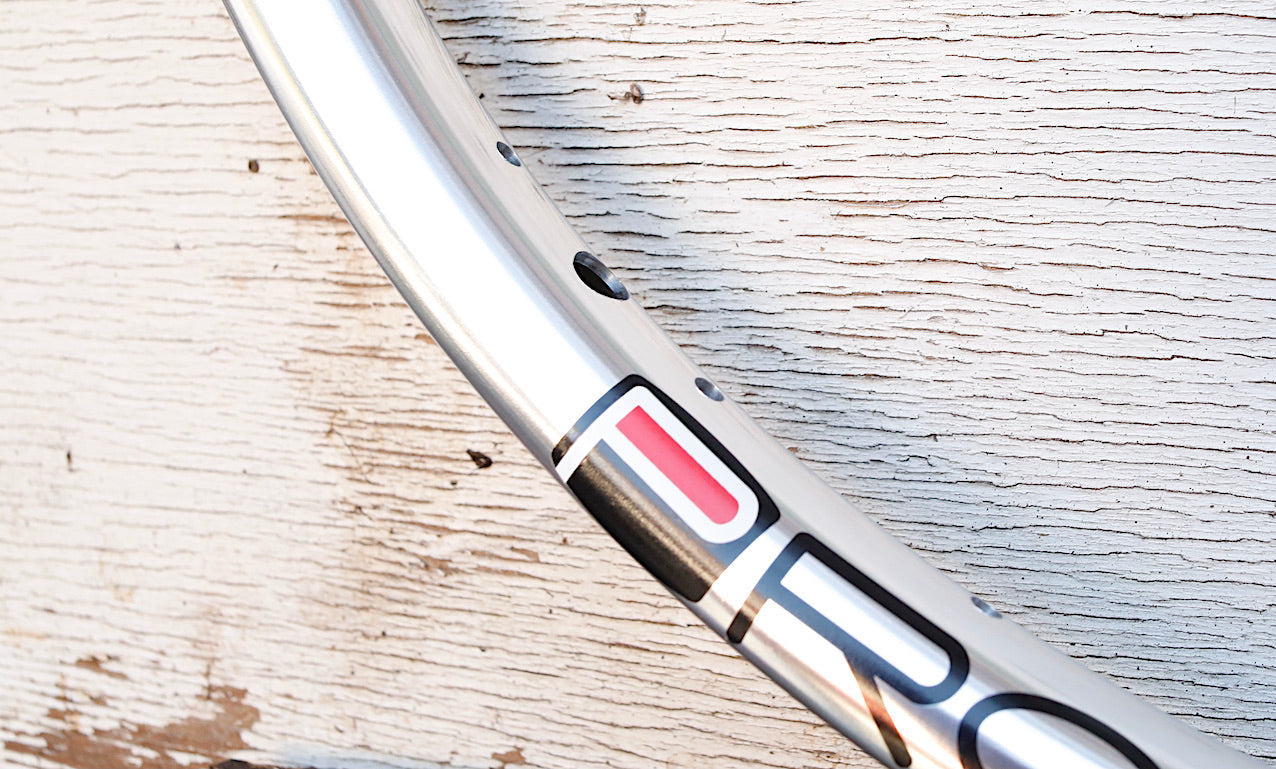

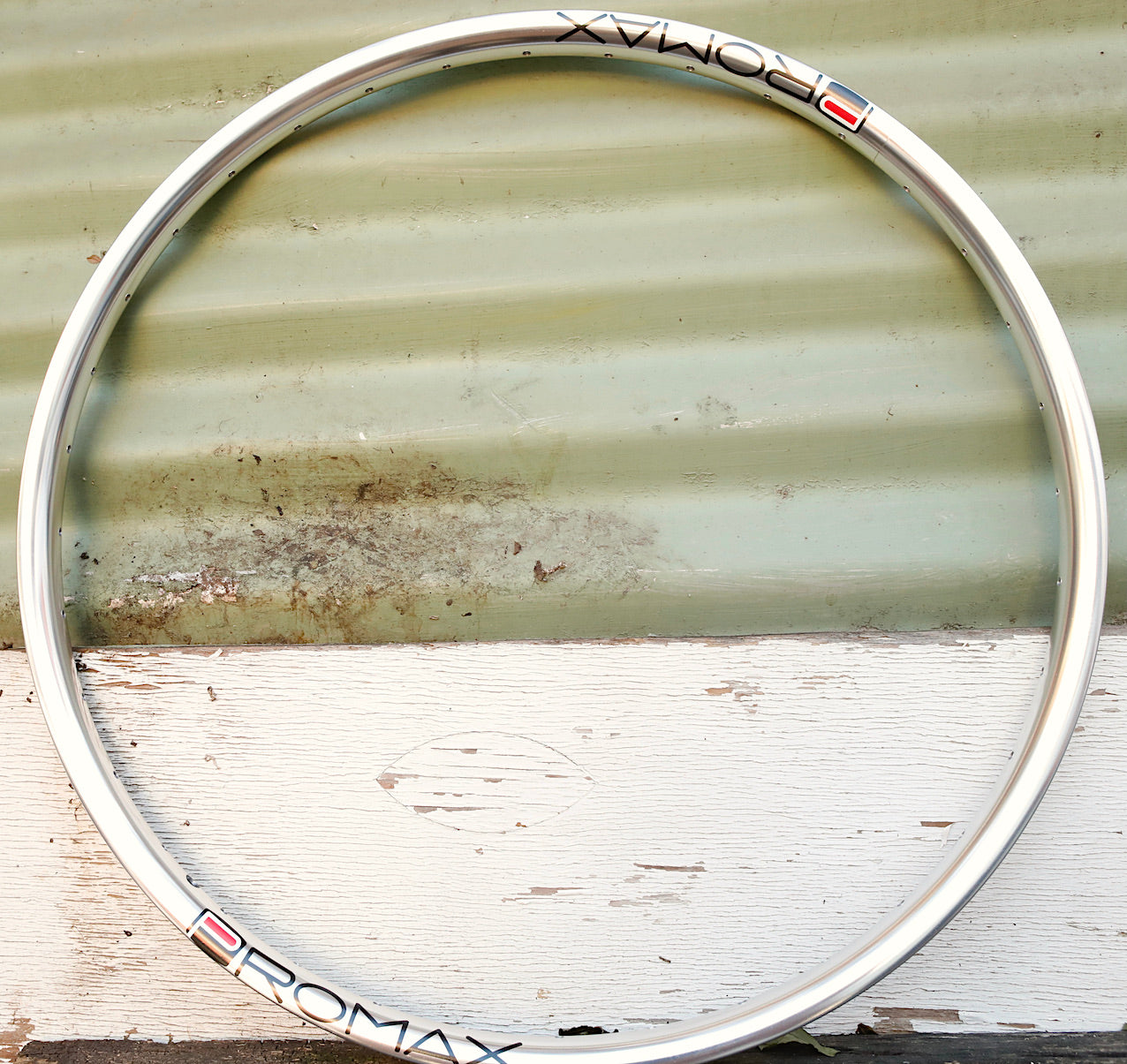

Promax RMV 24 Inch Rim



Promax RMV 24 Inch Rim
FRONT & REAR – 24” X 1.75”
Simplistic design focused on reducing weight while building a rim for strength and speed.
- Rim has thicker inner wall to allow a tighter and stronger built wheel
- Made of 6061-T6 Aluminum
- RMV Rims use a sleeved joint
Hub Drilling: 36
Rim Width (Internal): 22.4 mm (Rear) 24 mm (Front)
Rim Width (External): 28 mm (Rear) 28 mm (Front)
ISO Diameter: 507 / 24" BMX
Rim Material: Alloy
Manufacturer Spec ERD (mm): 491 mm (Rear) 488 mm (Front)
QBP Measured ERD (mm): 494.5 mm (Rear) 489 mm (Front)
Rim Center Offset (mm): 0 mm
Rim Depth (mm): 15 mm (Rear) 17.5 mm (Front)
Rim Joint: Sleeved
Tire Type: Clincher
Valve: Standard Schrader
Wheel Size: 24"
Weight: 422 g (Rear) 390 g (Front)
Eyelets: None
Sold individually.
